Continuous Integration

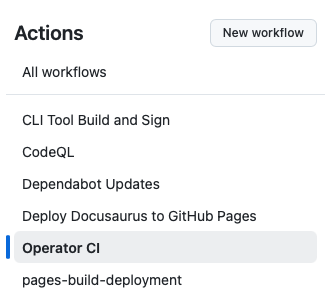

We use GitHub Actions as our CI tool to automate testing, building, releasing, and documentation deployment for the Vidra Operator. Currently, we maintain four workflows:

  • Deploy Docs (Deploy Docusaurus to GitHub Pages)
  • Operator CI
  • Operator CLI (CLI Tool Build and Sign)
  • Code Quality and Security Checks (CodeQL, Dependabot Updates)
Workflows

Deploy Docs​

The Deploy Docs workflow automates the deployment of our Docusaurus documentation site to GitHub Pages whenever documentation files are updated. In addition to publishing the static site, it generates up-to-date API documentation for our Custom Resource Definitions (CRDs) using crd-ref-docs (invoked via a Make target). The workflow builds the static site—including the auto-generated docs—and pushes the result to the gh-pages branch, ensuring that users always have access to the latest documentation. We also ensure the published Helm release files are not overwritten, as they also reside in gh-pages.

Trigger​

  • Any push to the main branch that affects documentation files.
  • Specifically triggered when:
    • A file in the docs/ directory is changed.

Check the docs.yaml workflow file for detailed configuration.

Operator CI​

This workflow handles linting, testing, building, publishing, and releasing the Vidra Operator to the GitHub Container Registry, GitHub Releases, and GitHub Pages.

Trigger​

  • Every push to a pull request or push to the main branch (protected).
  • If any file corresponding to the operator is changed.
  • Pushing a version tag (e.g., v0.0.3) will trigger the build and release process. The version is also tracked in the Makefile.

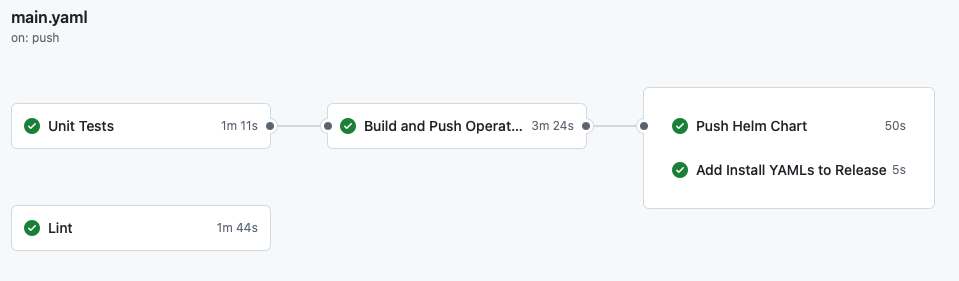

CI Pipeline Overview

Lint and Test​

  • Uses golangci-lint to perform static code analysis and linting on the Vidra Operator codebase.

  • Executes all tests for the Vidra Operator using go test and Ginkgo-based test suites.

  • Tests are run using envtest to provide a realistic Kubernetes API server.

  • A test coverage report is generated and uploaded to Codecov.

  • Pull requests where the code coverage drops below 80% or new lines of code are not covered by tests will have a warning comment added by the codecov GitHub Agent.

    Note

    The Codecov badge in the README reflects the current coverage status.

Build and Publish the Operator​

  • Uses the official Docker GitHub Actions to build and push the Vidra Operator image. (for platforms linux/amd64,linux/arm64)
  • Pushes the image to the GitHub Container Registry (GHCR).
  • The image is tagged with the current version (e.g., v0.0.3).
  • The operator bundle is generated using make bundle-build and published to the GitHub Container Registry (for OLM install).
  • The images are signed using cosign, allowing users to verify their authenticity and integrity.

Helm Chart​

  • Helmify is used to generate a Helm chart and build a Helm release from the operator manifests and kustomize files. The Helm release is also published to the GitHub Container Registry (OCI install).
  • The Helm chart is versioned and tagged with the same version as the operator image.
  • The Helm chart release (index.yaml and release) is automatically published to GitHub Releases, making it easy for users to install different versions of the Vidra Operator using Helm repository commands.
  • The packaged Helm release and its index.yaml are also published to the gh-pages branch of the repository for easy access via a consistent Helm repository URL.

Add YAML files to the release​

  • The YAML files used for installation via OLM (Operator Lifecycle Manager) are added to the release with the correct version as well. This allows users to install the operator using OLM by applying the catalogsource.yaml and subscription.yaml files.

You can find the workflow definition in main.yaml.

Operator CLI​

This workflow is responsible for building and testing the Vidra Operator CLI tool, which provides a command-line interface for interacting with the Vidra Operator.

Trigger​

  • Every push to a pull request or push to the main branch (protected).
  • If any file corresponding to the operator CLI is changed.

Lint and Test​

  • Uses golangci-lint to perform static code analysis and linting on the Vidra Operator CLI codebase.
  • Executes all tests for the Vidra Operator CLI using go test and Ginkgo-based test suites.

Build and Publish the CLI​

  • Uses the official Docker GitHub Actions to build the Vidra Operator CLI image.
  • Pushes the image to the GitHub Container Registry (GHCR).
  • The image is tagged with the current version (e.g., v0.0.3).
  • The CLI is built and packaged as a binary, which is also published to GitHub Releases.
  • The CLI binary is signed using cosign, allowing users to verify its authenticity and integrity.

You can find the workflow definition in cli.yaml.

Code Quality and Security Checks​

  • Dependabot is configured to automatically create pull requests for dependency updates of packages used in the repository.
  • CodeQL is used to perform static code analysis and security checks on the codebase. It scans for vulnerabilities and potential issues in the code, helping maintain a high standard of code quality and security.
